Fish Plate/Joint Bar , Raiway Accessories Made In China

Place of Origin : Zhejiang, China

Brand Name : SIGNUM

Certification : ISO9001:2008

Model Number : SGYWB11

MOQ : 300

Price : USD25.25

Packaging Details : Wooden Carton

Delivery Time : 20 Days

Payment Terms : TT, L/C

Supply Ability : 5,000 tons/month

Contact Now

Fish Plate/Joint Bar , Raiway Accessories Made In China

Name	Rail Fish Plate, Joint Bar
Type	Length /Diameter	Weight(Kg)	Material
115RE	4 hole- 24″	17.04	45# Chemical composition(%): C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035	50# Chemical composition(%): C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035
115RE	6 hole -36″	25.56
132-136RE	4hole-24″	17.75
132-136RE	6hole-36″	26.63
UIC60	4 hole - 630/Dia.26	18.07
UIC60	4 hole-600/Dia.28	17.47
UIC60	4 hole - 630/Dia.25	18.1
UIC54	4hole	14.34
UIC54	6hole- 800	19.94
BS80A	4hole	6.5
BS90A	685.8 / Dia.26	13.23
BS90A	792.9/Dia.26 .2	15.34
90/91LB	4 hole	18.08
90/91LB	6hole	19.9
50Kg	4hole	14.3
50Kg	6hole	19.5
BS75R	4hole	6.56
BS60A	4hole	5.61
S49	4 hole	9.71

Fish Plate/Joint Bar , Raiway Accessories Made In China

Signum Machinery Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.

We can provide products according to customers drawings and samples.Our main products are as following:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.

2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip

3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts

4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad

5. Fish plate / Joint bar / Rail joint/ Splice Bar

6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt

7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip

8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers

9. Plastic dowel / Guide plate/ Nylon insert

We are trying to supply the best products at the best price!

Rail Fish Plate

China Fish Plate/Joint Bar , Raiway Accessories Made In China wholesale

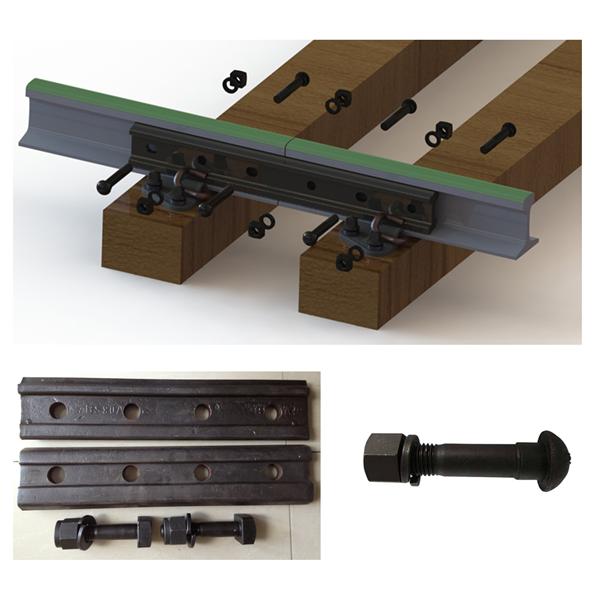

Fish Plate/Joint Bar , Raiway Accessories Made In China Images
